Product Overview

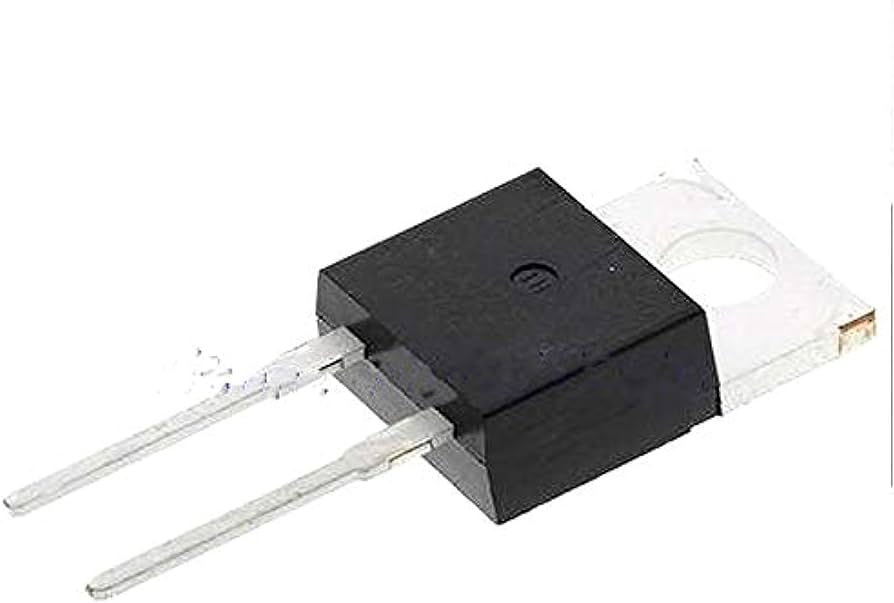

ISL9R3060P2 Fairchild Transistor
Description
The ISL9R3060G2, ISL9R3060P2 is a STEALTH™ diode optimized for low loss performance in high frequency hard switched applications. The STEALTH™ family exhibits low reverse recovery current (Irr) and exceptionally soft recovery under typical operating conditions. This device is intended for use as a free wheeling or boost diode in power supplies and other power switching applications. The low Irr and short ta phase reduce loss in switching transistors. The soft recovery minimizes ringing, expanding the range of conditions under which the diode may be operated without the use of additional snubber circuitry. Consider using the STEALTH™ diode with an SMPS IGBT to provide the most efficient and highest power density design at lower cost.
Features
Stealth Recovery trr = 36ns (@ IF = 30 A)
Max Forward Voltage, VF = 2.4 V (@ TC = 25°C)
600 V Reverse Voltage and High Reliability
Avalanche Energy Rated • RoHS Compliant
Applications
SMPS
Hard Switched PFC Boost Diode
UPS Free Wheeling Diode
Motor Drive FWD
SMPS FWD
Snubber Diode
