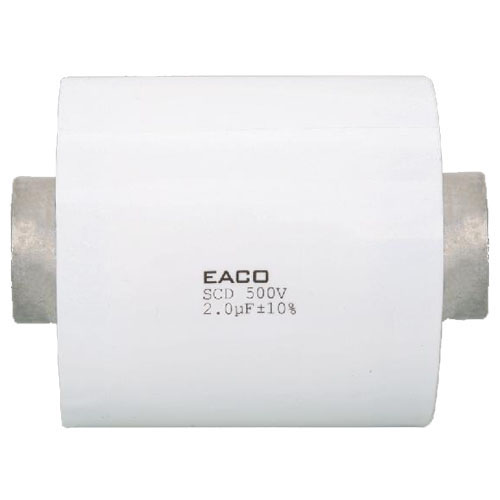

SCD High Current 400-700VAC

Product Details

GENERAL TECHNICAL CHARACTERISTICS
Reference standards : IEC 61071 60068 60384
Dielectric : Polypropylene film
Construction : Extended metallized film with internal series connection.
Dry construction, Non-inductive type.
Coating : Polyester tape wrapping, UL94V-0 resin end fill.
Leads: Threaded insert M6 or M8 filled with resin

ELECTRICAL CHARACTERISTICS
Operating temperature range : - 40 to + 85 ˚ C (case)
Capacitance : 0.5 to 12 μF
Rated Voltage : 400 to700 VAC
Tolerance : ± 5% , ± 10%
Dissipation factor: 5×10-4 Measured at 1000±20 Hz and 25±5˚C
Life expectancy : 100,000 hours at Un and 70 ˚C
(Hot-spot temperature).

TEST METHODS AND PERFORMANCES
Dielectric strength: 1.5Un (DC) applied for 10s at 25±5 ˚C
Test voltage terminal to case : 3kVAC/50Hz for 60s
Insulation resistance : 30000s but need not exceed 30 G (typical value) Ω , after 1 minute of electrification at 100Vdc (25±5 ˚C )
