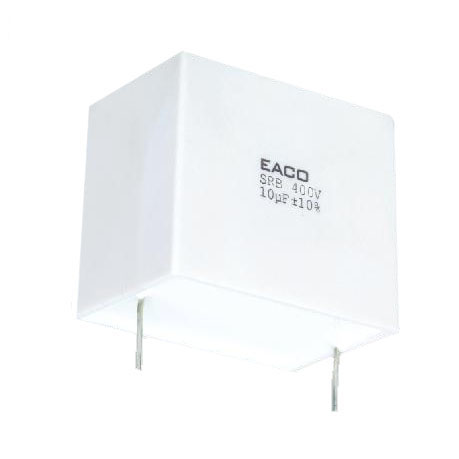

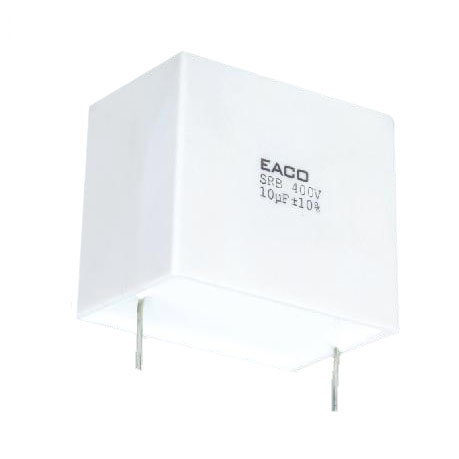

General Purpose SRB 330-850VDC

Available from EACO

Reference standards : IEC 61071-60068
Dielectric : Polypropylene film
Construction : Extended metallized carrier film
Coating : Solvent resistant plastic case with resin sealing. Flame retardant execution (UL94V-0 )
Leads: Tinned copper wire, 2 leads, 4 leads, 6 leads

ELECTRICAL CHARACTERISTICS
Operating temperature range(case) : - 40 to + 85 °C
Capacitance : 0.1 to 40μF
Rated Voltage : 330 to 850 VDC
Tolerance : ± 5% , ± 10%
Dissipation factor: 10×10-4 Measured at 1000±20Hz and 25±5°C
Life expectancy : 100,000 hours at Un and 70 °C(Hot-spot temperature)

TEST METHODS AND PERFORMANCES
Dielectric strength: 2Un (DC) applied for 10s at 25±5°C
Test voltage terminal to case : 3kVAC/50Hz for 60s
Insulation resistance : ≥ 5000 s (typical value), after 1 minute of electrification at 100Vdc (25±5°C )
