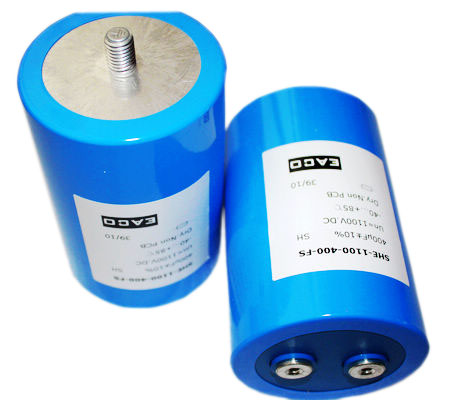

DC Link SHE 800~3200VDC

Product Details

Reference standards : IEC 61071-60068
Dielectric : Polypropylene film
Construction : Segmented metallized film,Dry construction
Coating : Aluminum case
Leads: Threaded insert M6, bolt available

ELECTRICAL CHARACTERISTICS
Operating temperature range : - 40 to + 85 °C (case)
Capacitance : 50 to 1000μF
Rated Voltage : 800 to 3200 VDC
Tolerance : ± 5% , ± 10%
Dissipation factor: ≤2×10-3 Measured at 100Hz and 25±5°C
Life expectancy : 100,000 hours at Un and 70 °C
(Hot-spot temperature)

TEST METHODS AND PERFORMANCES
Dielectric strength: 1.5Un (DC) applied for 10s at 25±5°C
Test voltage terminal to case : (1.5×Un+1000)Vac,Min 3000Vac,for 60 sec
Insulation resistance : ≥10000 s, after 1 minute of electrification
at 100Vdc (25±5°C )
