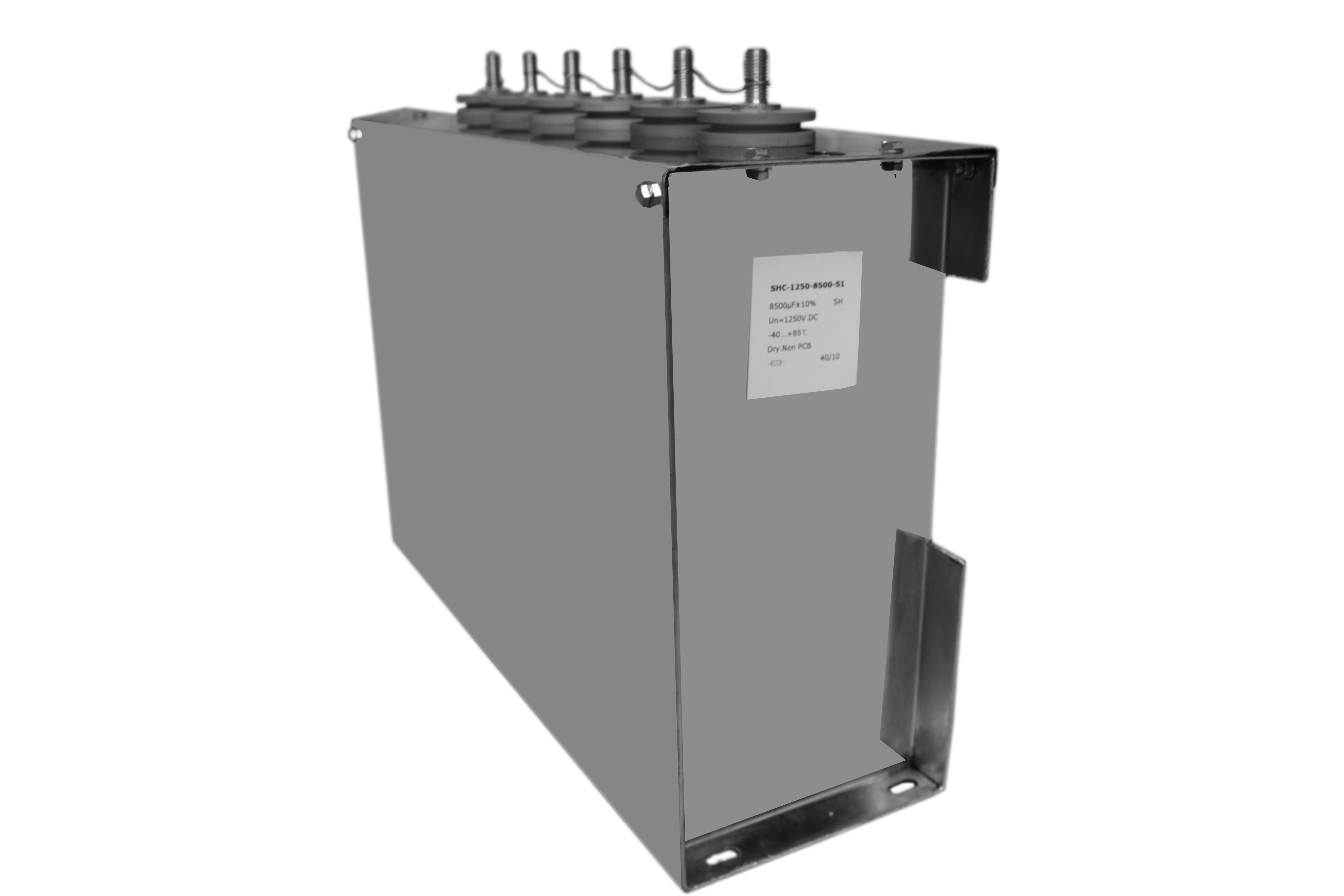

DC-Link Medium Power, Large Capacitance

Product Details

Reference standards : IEC 61071-60068
Dielectric : Polypropylene film
Construction : Segmented metallized film,Dry construction Non-inductive type
Coating : Aluminum case
Leads: Threaded insert

ELECTRICAL CHARACTERISTICS
Operating temperature range (case): - 40 to + 85 °C
Capacitance : 400 to 6000μF
Rated Voltage : 800 to 3600 VDC
Tolerance : ± 5% , ± 10%
Dissipation factor: ≤2×10-3 Measured at 100Hz and 25±5°C
Life expectancy : 100,000 hours at Un and 70 °C (Hot-spot temperature)

TEST METHODS AND PERFORMANCES
Dielectric strength: 1.5Un (DC) applied for 10s at 25±5°C
Test voltage terminal to case : (1.5×Un+1000)Vac,Min 3000Vac,for 60 sec
Insulation resistance : ≥5000 s, after 1 minute of electrification at 100Vdc (25±5°C )
