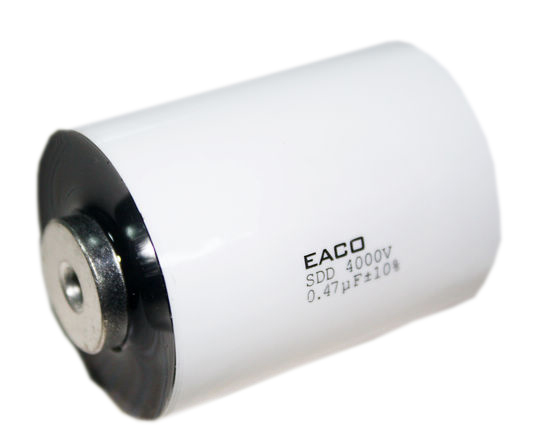

GTO Snubber SDD 4000-20000VDC Capacitor

Available from EACO
Product Menu
View Company Profile View all Products

Product Details

Reference standards : IEC 61071-60068
Dielectric : Polypropylene film
Construction : Extended metallized film with internal series connection
Dry construction, Non-inductive type
Coating : Polyester tape wrapping, UL94V-0 resin end fill
Leads: Threaded insert M6 or M8 filled with resin

Electrical Characteristics:
Operating temperature range: - 40 to + 85 °C (case)
Capacitance : 0.068 to 3.0μF
Rated Voltage : 4k to 20k VDC
Tolerance : ± 5% , ± 10%
Dissipation factor: ≤8×10-4 Measured at 1000±20 Hz and 25±5°C
Life expectancy : 100,000 hours at Un and 70 °C
(Hot-spot temperature).

Test Methods and Peformance:
Dielectric strength: 1.5Un (DC) applied for 10s at 25±5°C
Test voltage terminal to case : 3kVAC/50Hz for 60s
Insulation resistance : 30000s but need not exceed 30GΩ (typical value),
after 1 minute of electrification at 100Vdc (25±5°C )
