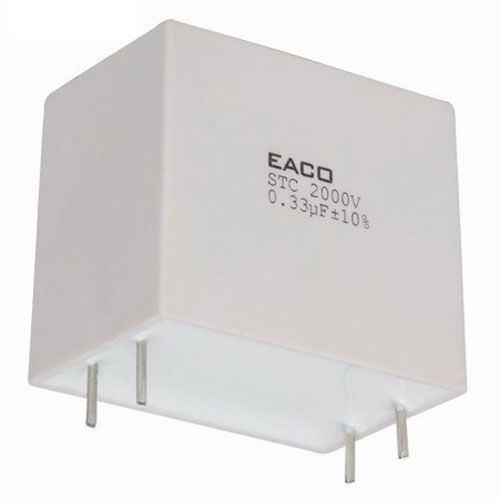

Snubber STC 700-3000VDC Capacitor

Available from EACO

Reference standards : IEC 61071-60068
Dielectric : Polypropylene film
Construction : Extended double side metallized carrier film with internal series connection and metallized film
Coating : Solvent resistant plastic case with resin sealing. Flame retardant execution (UL94V-0 )
Leads: Tinned copper wire, 2 leads, 4 leads, 6 leads

Electrical Characteristics:
Operating temperature range(case) : - 40 to + 85 °C
Capacitance : 0.0047 to 5.6μF
Rated Voltage : 700 to 3000 VDC
Tolerance : ± 5% , ± 10%
Dissipation factor: ≤6×10-4 Measured at 1000±20 Hz and 25±5°C
Life expectancy : 100,000 hours at Un and 70 °C(Hot-spot temperature)

Test Methods and Performance:
Dielectric strength: 1.5Un applied for 10s at 25±5°C
Test voltage terminal to case : 3kVAC/50Hz for 60s
Insulation resistance : 30000s but need not exceed 30GΩ,
(typical value), after 1 minute of electrification at 100Vdc (25±5°C )
