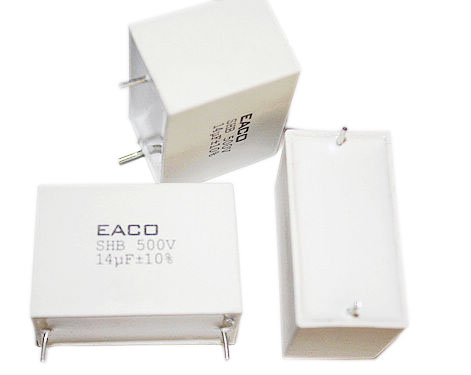

High-quality Film Capacitors for DC-Link

Product Details

Reference standards : IEC 61071-60068
Dielectric : Polypropylene film
Construction : Dry construction, filled by solid resin, Non-inductive type
Coating : Self extinguishing plastic case UL94V0
Leads: Tinned copper wire

Electrical Characteristics:
Operating temperature range(case) : - 40 to + 85 °C
Capacitance : 6.0 to 90μF
Rated Voltage : 500 to 1100 VDC
Tolerance : ± 5% , ± 10%
Dissipation factor: ≤1.0×10-3 Measured at 100 Hz and 25±5°C
Life expectancy : 100,000 hours at Un and 70 °C (Hot-spot temperature)

Test Methods and Performance:
Dielectric strength: 1.5Un (DC) applied for 10s at 25±5°C
Test voltage terminal to case : 3kVAC/50Hz for 60s
Insulation resistance : ≥ 5000 s (typical value), after 1 minute of electrification at 100Vdc (25±5°C )
