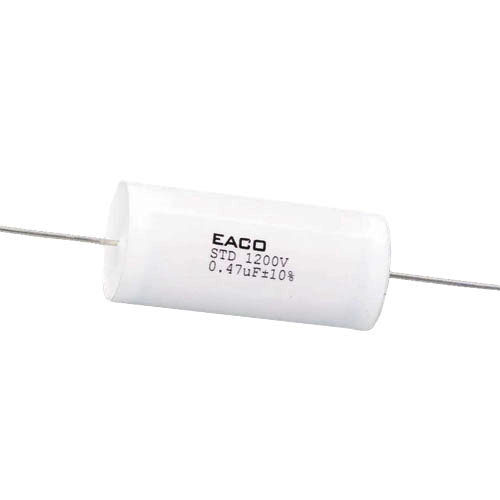

Snubber STD 700~3000VDC 0.0068~8.5UF Capacitor

Available from EACO

Reference standards : IEC 61071-60068
Dielectric : Polypropylene film
Construction : Extended double side metallized carrier film with internal series connection and metallized film
Coating : Polyester tape wrapping, UL94V-0 resin end fill
Leads: Tinned copper wire

Electrical Characteristics
Operating temperature range(case) : - 40 to + 85 °C
Capacitance : 0.0068 to 8.5μF
Rated Voltage : 700 to 3000 VDC
Tolerance : ± 5% , ± 10%
Dissipation factor: ≤6×10-4 Measured at 1000±20 Hz and 25±5°C
Life expectancy : 100,000 hours at Un and 70 °C(Hot-spot temperature)

Test Methods and Performances
Dielectric strength: 1.5Un applied for 10s at 25±5°C
Test voltage terminal to case : 3kVAC/50Hz for 60s
Insulation resistance : 30000s but need not exceed 30GΩ,
(typical value), after 1 minute of electrification at 100Vdc (25±5°C )
