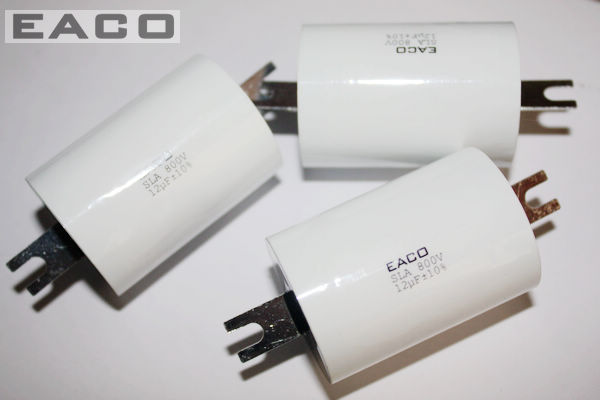

High Ripple Current 400,800,1000VDC Capacitor

Available from EACO

Reference standards : IEC 61071-60068
Dielectric : Polypropylene film
Construction : Extended metallized film. Dry construction, Non-inductive type
Coating : Polyester tape wrapping, UL94V-0 resin end fill
Leads: Tinned copper wire

ELECTRICAL CHARACTERISTICS
Operating temperature range(case) : - 40 to + 85 °C
Capacitance : 1.0 to 200μF
Rated Voltage : 400 ,800,1000VDC (permissible AC voltage at 60Hz 250.400,500VAC)
Tolerance : ± 5% , ± 10%
Dissipation factor: ≤10×10-4 Measured at 100 Hz and 25±5°C
Life expectancy : 100,000 hours at Un and 70 °C (Hot-spot temperature)

TEST METHODS AND PERFORMANCES
Dielectric strength: 1.6Un (DC) applied for 10s at 25±5°C (1 minute for type test)
Test voltage terminal to case : 3kVAC/50Hz for 60s
Insulation resistance : ≥5000s, (typical value), after 1 minute of electrification at 100VDC (25±5°C )
