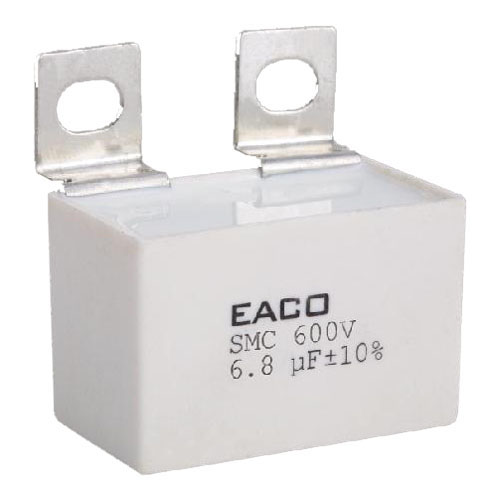

General Purpose SMC 330-700VDC

Product Details

Reference standards : IEC 61071-60068
Dielectric : Polypropylene film
Construction : Extended metallized film with
Coating : Solvent resistant plastic case with resin sealing
Flame retardant execution (UL94V-0 )
Leads: Tinned copper lugs for screw fixing
or soldering on PCBS

ELECTRICAL CHARACTERISTICS
Operating temperature range : - 40 to + 85 °C (case)
Capacitance : 1.5 to 40μF
Rated Voltage : 330 to 700 VDC
Tolerance : ± 5% , ± 10%
Dissipation factor: ≤14×10-4 Measured at 1000±20Hz
and 25±5°C
Life expectancy : 100,000 hours at Un and 70 °C
(Hot-spot temperature)

TEST METHODS AND PERFORMANCES
Dielectric strength: 2Un (DC) applied for 10s at 25±5°C
Test voltage terminal to case : 3kVAC/50Hz for 60s
Insulation resistance : ≥5000s , (typical value), after 1 minute of
electrification at 100Vdc (25±5°C )
