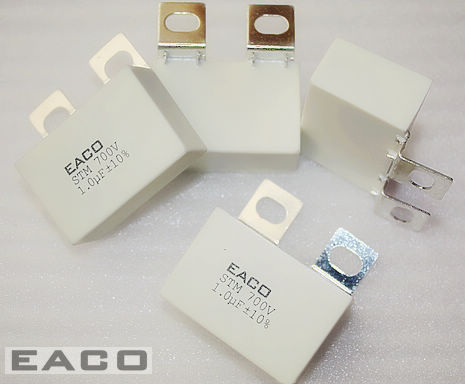

Snubber STM 700-3000VDC Capacitor

Product Details

EACO provides high-quality film capacitors for IGBT snubber, high current and pulse applications
Reference standards : IEC 61071-60068
Dielectric : Polypropylene film
Construction : Extended double side metallized carrier film with
internal series connection and metallized film
Coating : Solvent resistant plastic case with resin sealing
Flame retardant execution (UL94V-0 )
Leads: Tinned copper lugs for screw fixing
or soldering on PCBS

ELECTRICAL CHARACTERISTICS
Operating temperature range : - 40 to + 85 °C (case)
Capacitance : 0.047 to 10μF
Rated Voltage : 700 to 3000 VDC
Tolerance : ± 5% , ± 10%
Dissipation factor: ≤6×10-4 Measured at 1000±20 Hz
and 25±5°C
Life expectancy : 100,000 hours at Un and 70 °C
(Hot-spot temperature)

TEST METHODS AND PERFORMANCES
Dielectric strength: 1.5Un applied for 10s at 25±5°C
Test voltage terminal to case : 3kVAC/50Hz for 60s
Insulation resistance : 30000s but need not exceed 30GΩ
(typical value), after 1 minute of
electrification at 100Vdc (25±5°C )
