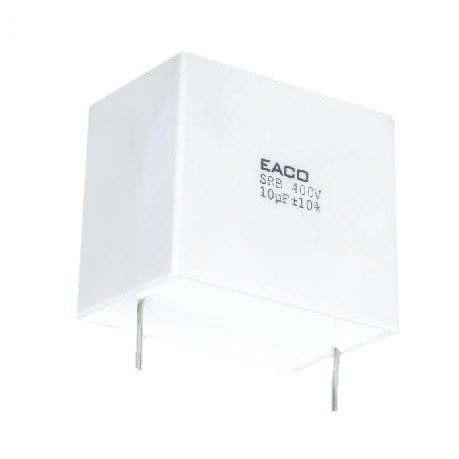

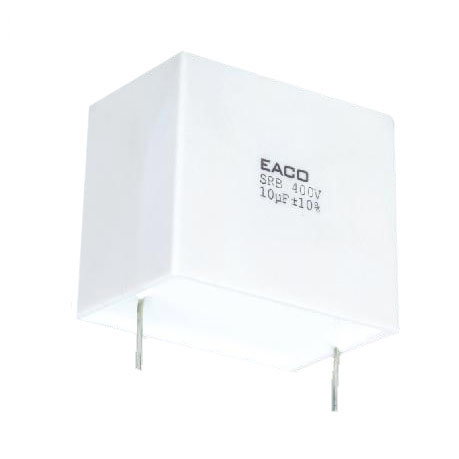

General Purpose SRB- 850- 6.0 Capacitor

Available from EACO

Dielectric: polypropylene film
Construction: extended metalized film
With internal series connection and metalized film
Coating: solvent-resistant plastic case with resin sealing
Flame retardant execution (UL94V-0)
Leads: tinned copper wire, two leads, four leads and six leads
Electrical characteristics:
Operating temperature range (case): -40 to 85°C
Capacitance: 0.1 to 60μF
Rated voltage: 330 to 850V DC
Tolerance: ±5%, ±10%
Dissipation factor: measured at 1000 ±20Hz and 25 ±5°C
When Cr ≤5.0μF: 6 x 10-4
When Cr <5.0μF: 10 x 10-4
Lifespan: 100,000 hours at Un and 70°C
Test methods and performances:
Dielectric strength: 2Ur (DC) applied for 10s at 25 ±5°C (one minute for type test)
Test voltage terminal to case: 3kV, 50Hz for 60s
Insulation resistance (C x Ri): ≥5000s
