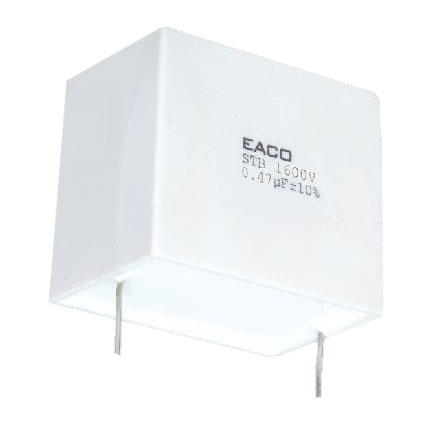

Snubber STB-1600-0.47 Capacitor

Available from EACO
Product Menu
View Company Profile View all Products

Product Details

Dielectric: polypropylene film
Construction: extended double side metalized carrier film
With internal series connection and metalized film
Coating: solvent-resistant plastic case with resin sealing
Flame retardant execution (UL94V-0 )
Leads: tinned copper wire//ul

Electrical Characteristics:
Operating temperature range (case): -40 to 85°C
Capacitance: 0.001 to 1.5μF
Rated voltages: 630 to 2,000V DC
Tolerance: ±5%, ±10%
Dissipation factor: measured at 1,000 ± 20Hz and 25 ± 5°C
Cr≤0.1μF: 3 x 10-4
Cr>0.1μF: 4 x 10-4
Lifespan: 100,000 hours at Ur and 70°C//ul

Test Methods and Performance:
Dielectric strength: 1.8Ur (DC) applied for 2s at 25 ± 5°C (one minute for type test)
Test voltage terminal to case: 3kV, 50Hz for 60s
Insulation resistance: 30,000s but need not exceed 30GΩ (typical value), after one minute of electrification at 100V DC (25 ± 5°C)/ul
