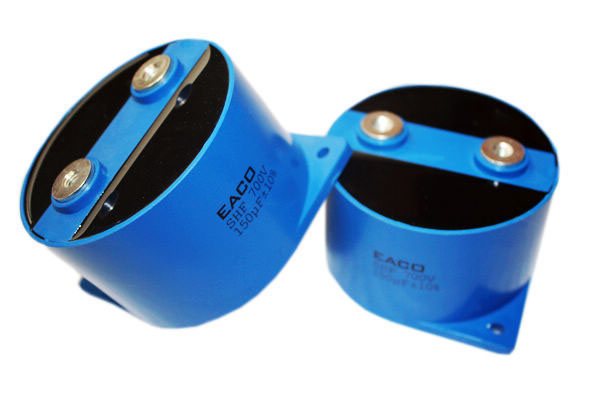

DC-Link SHF-1200-80

Available from EACO

Reference standards: IEC 61071-60068
Dielectric: polypropylene film
Construction: dry construction, filled by solid resin and non-inductive type
Case: self extinguishing plastic case UL94V0
Electrical characteristics:
Operating temperatures range (case): - 40 to +85℃
Capacity: 6.8 to 500μF
Rated voltages: 500 to 2,200V DC
Tolerance: ±5% ±10%
Dissipation factor: ≤2.0 x 10 to three measured at 1000Hz and 25℃
Lifespan expectancy: 100,000 hours at Un and 70℃
Test methods and performances:
Test voltage between terminals: style SHF-L 1.5 x Un for 10s at 25℃
Style: SHF-H 1.6 x Un for 10s at 25℃
Test voltage terminal to case: (1.5 × Un + 1,000)V AC and minimum 3,000V AC two seconds
Insulation resistance (C x Ri): ≥5,000 seconds
Much higher current per capacitance
High voltage
Long lifespan
Higher capability to withstand to over-voltage
No acid inside
