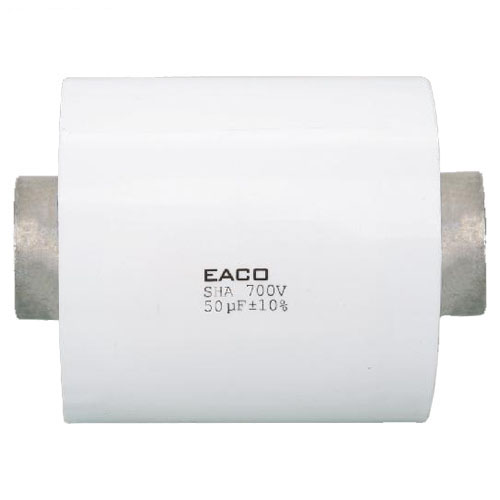

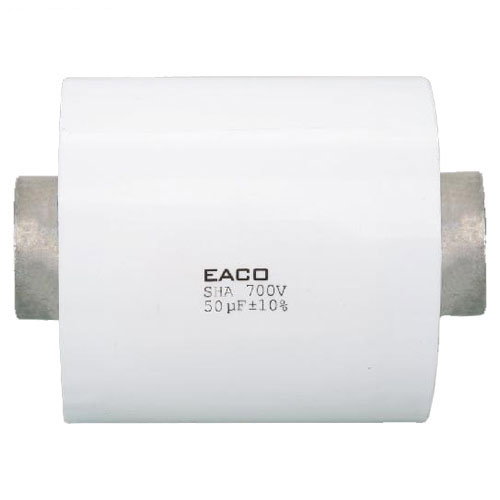

DC-Link SHA-900-200-114F8

Product Details

Reference standards: IEC 61071-60068
Dielectric: polypropylene film
Construction: dry construction, filled by solid resin, and non-inductive type
Coating: polyester tape wrapping, UL94V0 resin end fill
Electrical characteristics:
Operating temperature range (case): -40 to 85℃
Capacitance: 15 to 500μF
Rated voltage: 500 to 1,100V DC
Tolerance: ±5% to ±10%
Dissipation factor: ≤2× 10-3 measured at 1,000 ± 20Hz 25 ±5℃
Life expectancy: 100,000 hours at Un and 70℃
Test methods and performances:
Test voltage between terminals: 1.5 x Un for 10s at 25℃
Test voltage terminal to case: 3kV 50Hz for 60 seconds
Insulation resistance (CxRi): ≥5,000s
