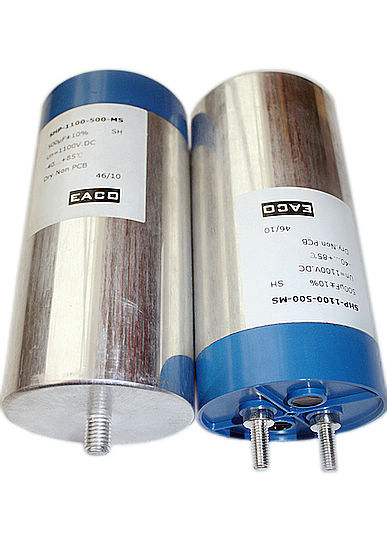

DC-Link SHP-1100-900-FS

Product Details

Dielectric: polypropylene film
Construction: dry, filled by solid resin
Case: aluminum
Non-inductive type
Reference standards: IEC 61071 and 60068-1
Electrical characteristics:
Rated voltage: 700 to 4,000V DC
Capacitance: 33 to 3,200μF
Tolerance: ±5% and ±10%
Dissipation factor: ≤2 x 10 to 3 measured at 100Hz and 25°C
Operating temperature: -40 to 85°C
Expected lifespan: 100,000 hours at Un and 70°C (hotspot temperature)
Test methods and performance:
Test voltage between terminals: 1.5 x Un for 10s at 25°C
Test voltage terminal to case: (1.5 x Un + 1,000)V AC, minute 3,000V AC, 60s at 25°C
Insulation resistance (C x Ri): ≥10,000s
