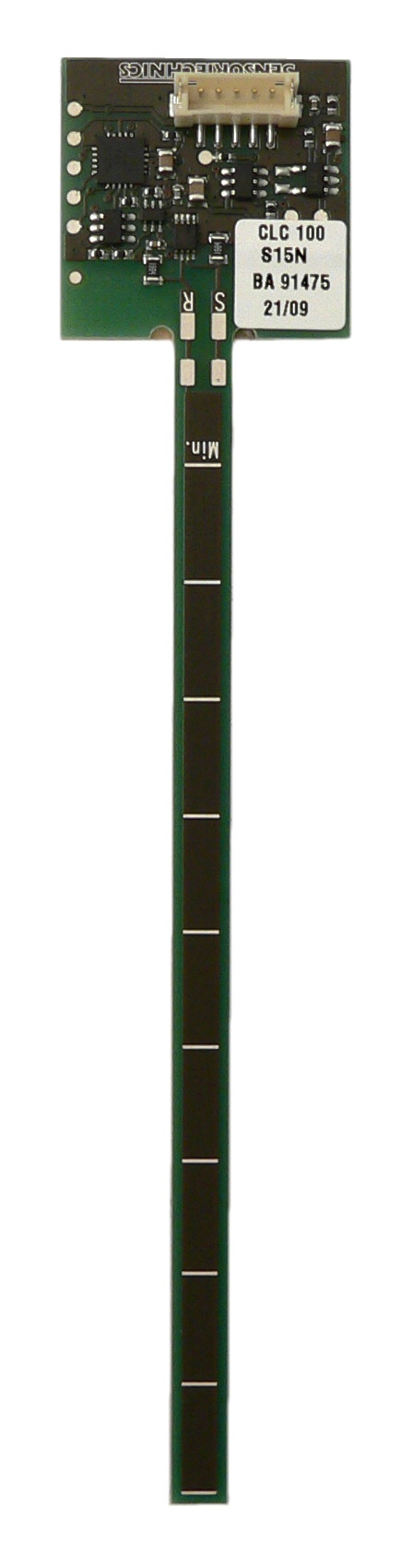

CLC Capacitive Level Sensors
Available from First Sensor, Inc.
The First Sensor CLC series uses a new contact-free capacitive sensor technology to continuously measure the fill level of liquids as well as granular or pulverized materials. The miniature level sensor can be easily mounted to the outside of a container or vessel and is able to measure through almost any non-metallic wall material. The level sensing range of the standard device is up to 100 mm which can be enlarged in special multi-sensor configurations. The non-invasive design, with no contact between the sensor and the fluid, eliminates all media compatibility and sterility issues. The device is highly flexible and the user can easily calibrate the sensor to measure to the desired levels, media and application set-up.
The CLC can be used in many level monitoring applications within medical technology, chemical and pharmaceutical industries, also biotechnology as well as food and beverage.
* Capacitive level monitoring of liquids and bulk materials
* Continuous, contact-free measurement principle
* Miniature sized sensor
* Easily mountable to the outside of a container
* Analog and digital outputs
