folded fin

Product Details

Heat sink with folded fin offers advantages of offering maximum surface area in minimum space thus offering better thermal performance. Folded fins are available in wide variety of material with various fin density. Folded fins can be attached with base material either thermally conductive epoxy or by dip brazing technology to reduce the thermal resistance & improve mechanical integrity.

Specifications for Flat Crest Folded Fin.



Types of fin crest:

* Plain flat crest
* Plain semi flat crest
* Plain round crest

Fin Specification limits:

* Fin height: 0.100" to 4.00"
* Fin Material thickness: 0.002" TO 0.080"
* Fin per inches: 2 F.P.I TO 24 F.P.I
* Fin Material: Aluminum, Copper

Information required to order:

1. Fin type
2. Fin material
3. Fin material thickness
4. Fin height
5. Fin pitch
6. Fin width
7. Flow length

Please note that there is no standard products offered at this time for folded fin & all products are built to per customer specification & requirement.

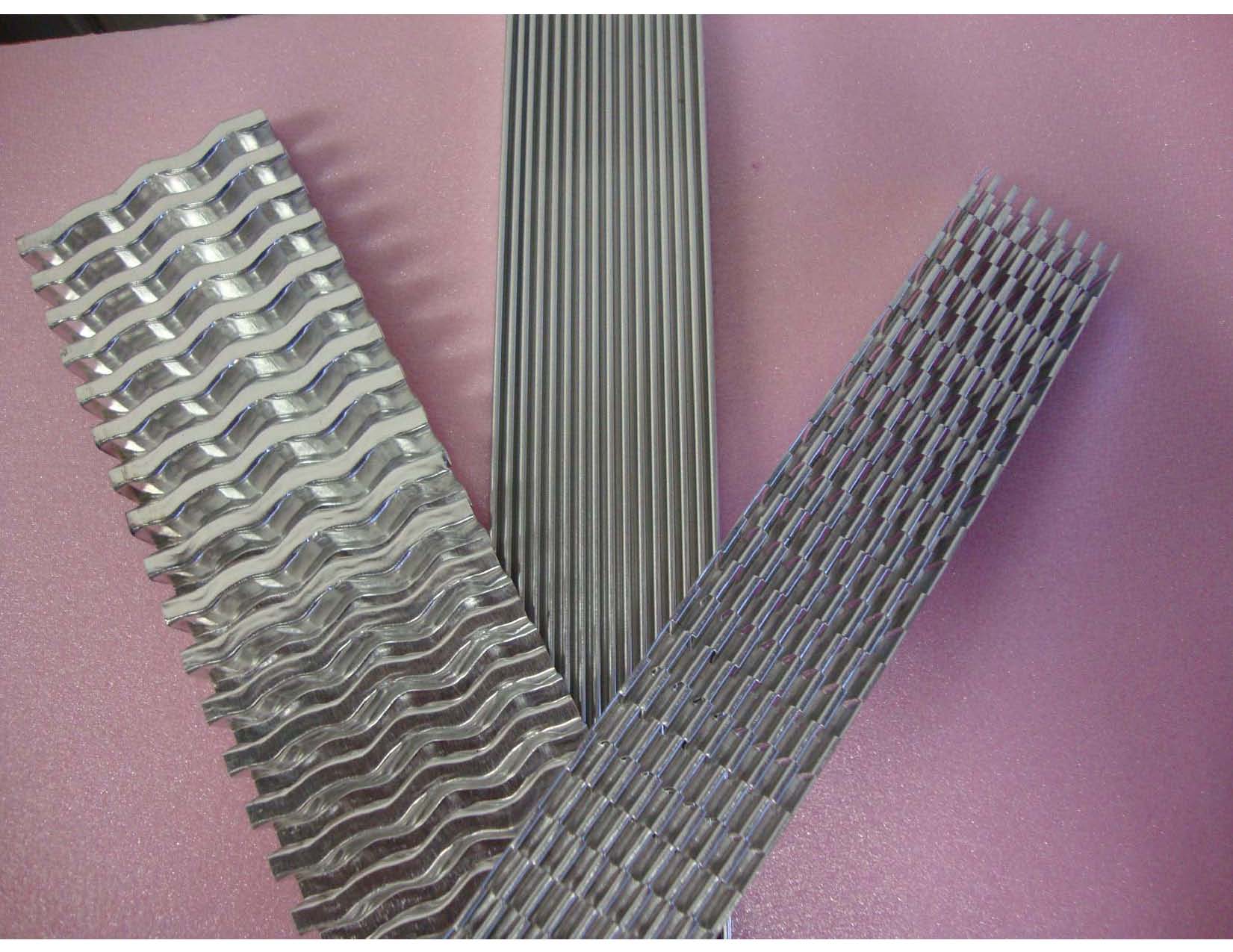

SNS cooling technology also offers fins in wave & augmented style & please please sends email at [email protected] for any further inquiry/ information
