Product Details

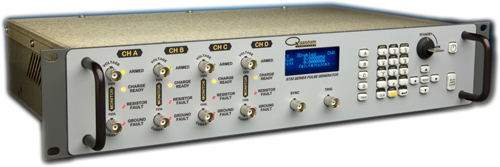

The 9730 Series, our most capable current generator, has the option of 2 or 4 channel outputs. This series provides users with the ability to generate highly precise current pulses, making this unit ideal for applications that require a high level of accuracy and repeatability.

Current sensing and integrated 4-wire resistance measurement are available for each channel as well as advanced safety and testing features that include remote interlock, pre and post measurements and keyed enable switch. All of these features assure that the unit fires only when all safety criteria are met.

With the performance and advanced features of the 9730 Current Pulse Generator, applications such as air bag deployment testing (squib detonation) or igniter triggering can be done reliably, safely and with a high rate of repeatability.

KEY FEATURES

* Up to 4 individual outputs with fully individual programming and control
* Up to 6A output per channel
* Complete channel and system setup stored in memory. Provides 12 memory storage slots.
* Remote programmability – RS232, USB and Ethernet
* Front and rear external trigger inputs
