Available from Conversion Devices , Inc.

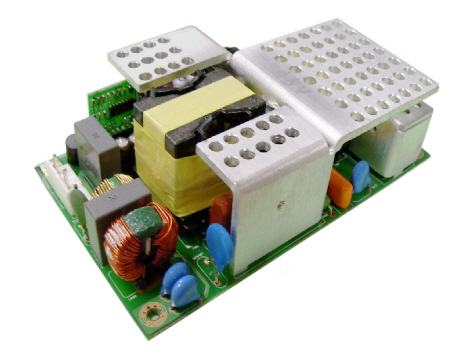

The new high-density, low leakage 200-Watt medical power supply features a wide range 85-264 VAC input with active power factor correction to minimize input harmonic distortion. The SMM201 measures a mere 1.39" H x 3.0" W x 5.0" L with a power density of 13.33 watts/in3. The unit delivers its full rated output of 200W with 15 LFM of forced air and has a convection rating of 150W. As a single output model the SMM201 features a high current main output with available voltages from 12 to 60 Vdc up to 200 watts. The dual output model has a second output with voltages ranging from 3.3V to 12V with a current rating up to 5A.
Features include a built-in CISPR 22 Class “B” EMI filter. Safety ground leakage current is less than 140 µA @ 132 VAC input and 280 µA @ 220 VAC input. The new SMM201 model has an operating temperature range of zero to 50°C without derating and can function up to 70°C by derating the output 2.5 percent per degree C.
This small, low power switcher is ideally suited for a wide variety of medical applications including: medical diagnostic devices, patient monitors, cosmetic lasers, and respiratory systems.
The SMM201 meets worldwide medical safety and performance standards of UL60601, CSA 22.2 No. 601.1. IEC601-1 and EN60601-1.
