Available from Associated Research, Inc.

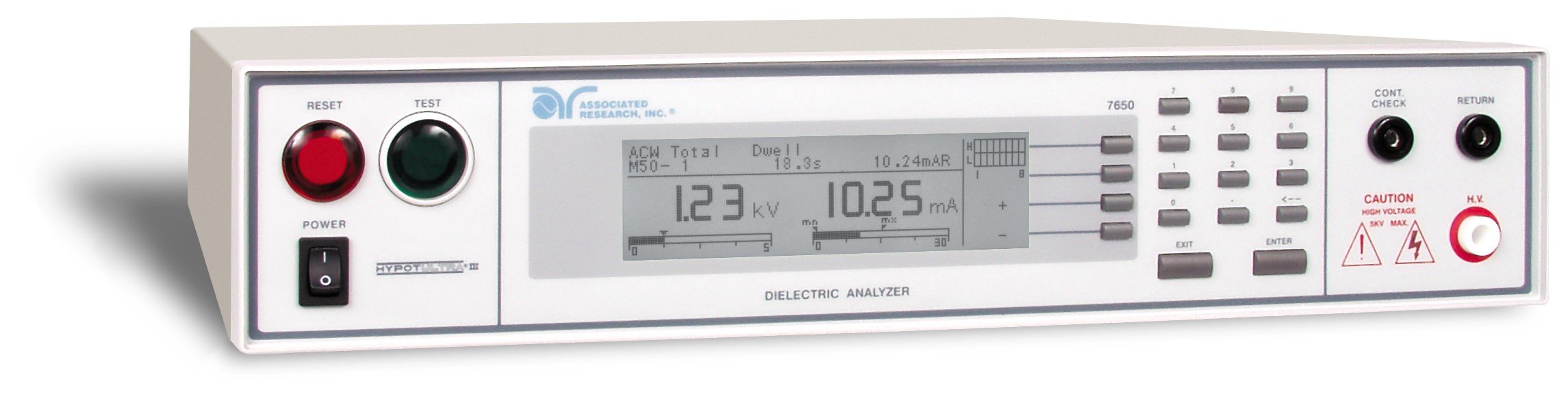

HypotULTRA III is a fully-automated dielectric analyzer for Safety Agency production line testing. The HypotULTRA III family features two models. The 7620 is an AC Hipot with an optional 4 or 8 channel internal scanning matrix. The 7650 is a 3-in-1 system that performs AC Hipot, DC Hipot and Insulation Resistance tests. An optional 4 or 8 channel internal scanning matrix is also available. HypotULTRA III can be used as a bench top instrument or as a PC controlled system. It is well suited for all hipot testing applications. An additional continuity test mode allows the HypotULTRA III to perform both point-to-point continuity and hipot tests at voltages up to 5,000 volts. Both models feature an enhanced graphic LCD with an analog bar graph, which allows users to monitor test results versus limit settings. HypotULTRA III is an easy-to-use dielectric analyzer with advanced technology and test capability.
