OMNIA

Product Details

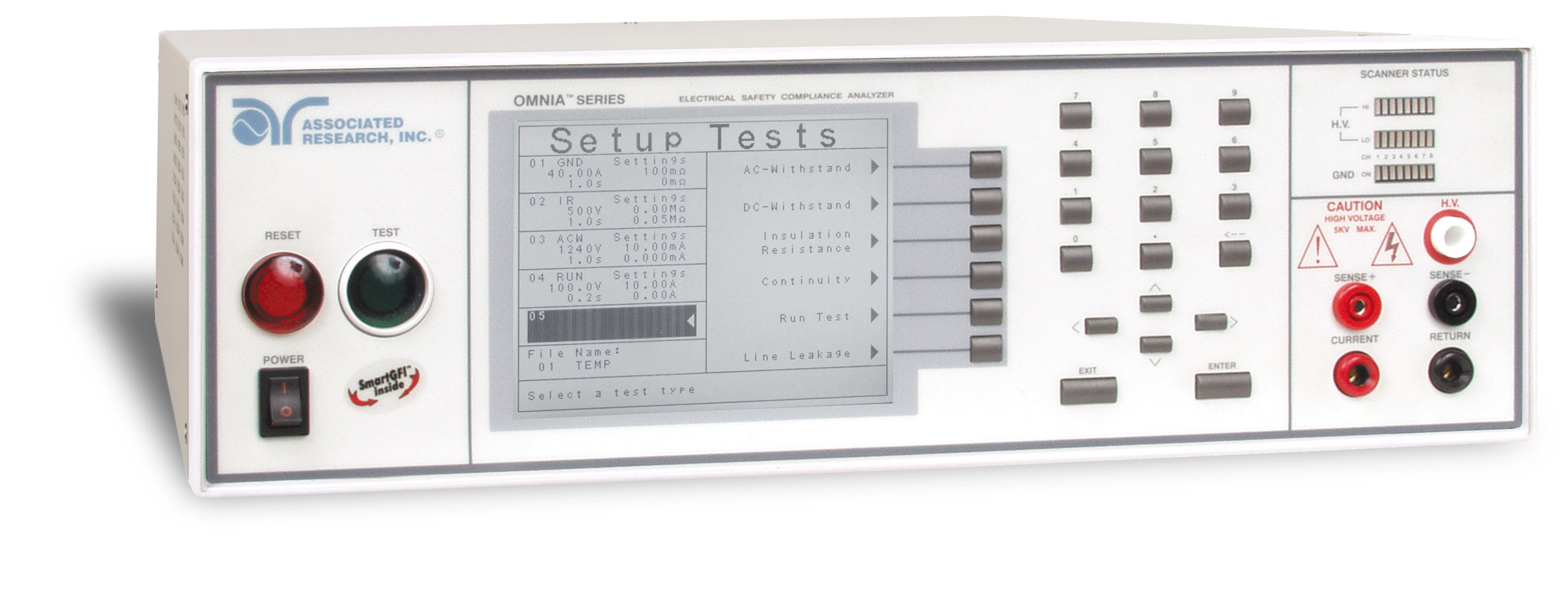

The OMNIA 8100 series is a family of multi-function electrical safety compliance analyzers that consist of three models. OMNIA 4, model 8104, is a 4-in-1 instrument that provides AC/DC Hipot, Insulation Resistance and 40 Amp Ground Bond/Continuity tests. OMNIA 5, model 8105, is a 5-in-1 instrument that provides AC/DC Hipot, Insulation Resistance, 40 Amp Ground Bond/Continuity and Functional Run tests. OMNIA 6, model 8106, is a 6-in-1 instrument that provides AC/DC Hipot, Insulation Resistance, 40 Amp Ground Bond/Continuity, Functional Run and Line Leakage tests. All models feature an enhanced graphic LCD and simplified user-interface. OMNIA can be used as a bench top instrument or as a PC controlled system. Omnia comes standard with an USB/RS-232 interface. Ethernet and GPIB are available as options. It is best suited for applications that require multiple product safety tests with a single Device Under Test (DUT) connection. The ability to perform multiple electrical safety tests with a single connection will increase production and efficiency while saving time and money.
