Snubbers

Over the recent past, new technologies have increased the demand for high current power capacitors with high reliability and condensed size. EFC has designed a series of Snubber / Power Capacitors specifically for these requirements.

With design requirements of low inductance and power consumption, high peak/RMS currents and good frequency response, the dielectric of choice is obviously polypropylene.

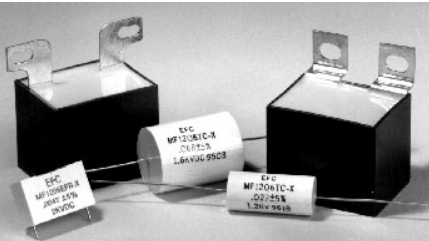

EFC Snubber / Power Capacitor Characteristics

Low power losses
Low inductance
Low ESR
Excellent frequency response
High RMS current ratings
High pulse current ratings (dv/dt)
Self healing
Negative temperature coefficient
Flame-retardant construction



Typical Snubber / Power Capacitor Applications

IGBT module protection
TV deflections
Semiconductor switching circuits
SCR commutation circuits
Motor controls
AC voltage applications
Switching mode power supply (SMPS) protection
