MLX91207

Product Details

The MLX91207 is a fully customer programmable monolithic Sensor IC in standard SO-8 package. The Hall-Sensor provides a high speed analog output signal proportional to the external applied flux density and additional thermometer output. It enables the user to construct a robust current sensor solution with fast response times <10usec.
Fully Programmable plug and play
The MLX91207 is automotive qualified and particularly appropriate for DC and/or AC current measurements up to 70kHz with ohmic isolation and low assembly cost requirements. The sensor features over voltage and reverse voltage protection including broken track diagnostics and can therefore be used as a “stand-alone” current sensor being connected directly to a cable. The transfer characteristic of the MLX91207 is fully customer programmable.
Applications

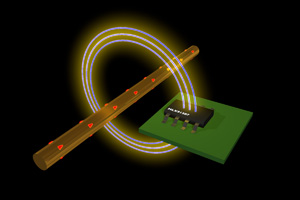

In the typical application the sensor is used in combination with a ring shaped soft ferromagnetic core. The Hall-IC is placed in a small air gap and the current conductor is passed through the inner part of the ferromagnetic ring. The ferromagnetic ring concentrates and amplifies the magnetic flux on the Hall-Sensor IC which generates an output voltage proportional to the current. The Melexis MLX91207 is perfectly suitable in many fields of current sensing in automotive like traditional battery monitoring, for converters in hybrids, electric vehicles, etc. Furthermore in can be used in different applications in industrial and consumer markets like solar panels.
